Mapflow <> QGIS


Mapflow can be used via QGIS. You need to autohorise authorization to work with the Mapflow API and get API token to login.


Preview results

Join Mapflow <> QGIS open source project on Github.

What is QGIS

QGIS ( is the leading and most popular Open Source Desktop GIS. Users can visualize, manage, edit, analyse geodata, and compose printable maps. Get a first impression with a more detailed feature list. Know more about QGIS and istall it from official site.

QGIS has an interface for external Python plugins that allows to connect more apps and extend core functionallity. Our “Mapflow - QGIS” app enables connection to Mapflow Mapflow processing API to run AI-mapping and add output as layers to the QGIS workspace.

How to install the plugin

Click Plugins -–> Manage…, go to the Not installed (or All) tab and enter “MapFlow” in the search box. Click Install Plugin. You will be able to see then if the newer version of the app is available (in the Upgradeable tab) and to check the changelog for details.

The plugin icon has appeared in the QGIS Toolbar. If the icon isn’t automatically displayed, right-click on the Toolbar and check if the Mapflow checkbox is activated.

How to login

You need to log in with your credentials to start using the plugin. Go to, register and obtain API token.

Login window

Or you can use the OAuth 2.0 protocol as a more convenient and secure way.


Logging in with OAuth is a convenient feature, but still experimental for us.

Also keep in mind that at the moment this feature does not support proxies.

OAuth2 setup

Information on how to log in using OAuth can be found in this section.

User interface

Main plugin workspace has two sections: left sidebar with the processing controls and the tabs section.

View of the main window

Processing controls panel allows to start new processing and/or rate finished processings, and includes following:

Processing controls panel

Name of the field / button


Processing name

Name of your processing


The area to be processed. This layer is automatically displayed in the drop-down list from the list of QGIS vector layers.

Data source

Base imagery to be processed. By default Mapbox is selected, in the drop-down list you can also select satellite images of the commercial providers. You can open your image through the additional options button.

Show preview

A preview of your data source or, if it is not available, an OpenStreetMap basemap

Use image extent

This area becomes active if processing is performed on the .tif file. Allows you not to create an additional vector layer processing area for this image but takes its extent.

Processing area

Automatic calculation of the area of the selected processing area.

AI Model

Processing type. In the drop-down list, you can select the following processing types (default list of processing scenarios): Building Detection, Roads Detection, Forest Detection, Forest Detection With Heights, Construction Detection, Fields Detection.

Your balance

Remaining area available for processing

Start processing

New processing start button. You will see a notification about the successful start of processing, or about incorrectly selected parameters after clicking it. It will appear in the block for displaying and working with processing after a successful start of processing.

Stars for rating

Rating scores for the finished processing

Feedback field

Comments about rating

Your current balance is dispayed in the Tob bar. It also contains menu to access you personal profile on top up you balance; open billing history; log out of current session.

Tabs section contains 4 tabs:

1. Processing

2. Imagery search

3. Settings

4. Help

1. Processing

View of the processing tab

Explanation of the fields and buttons of this tab:


Name of the field



Your processing name.


User-selected item from the list of available models.


Processing status: IN_PROGRESS, OK, FAILED.


The percentage of completeness of the processing.


The processing area (AOI).


The date-time of the processing creation.


Name of the button


View results

Shows the results of completed processing in QGIS layers.


Deletes selected processing/processings.


A list of options for working with the results of processings.

Save results

Saves processing results to GeoJSON file.

Download AOI

Adds processing AOI to qgis as a layer, for further work or export.

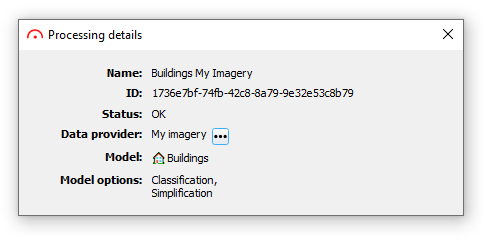

See details

Shows information about processing (Name, Status, Model, Model options, Data provider).


Renames your processing.


To download the processing results, you can double-click on the completed processing in the list

3. Settings

View of the providers tab

Name of the field / button


Imagery providers

Drop-down list with additional satellite imagery providers.

“Add provider” button

Button for adding a source of images.

“Delete provider” button

Button for deleting the custom data provider.

“Edit provider” button

Opens dialog to edit custom data provider.

Select mapflow project

Drop-down list with mapflow projects on you account.

“Add project” button

Button for creating your new map flow project.

“Delete project” button

Button for deleting the mapflow project.

“Edit project” button

Button for editing the mapflow project.

Here you can configure how the processing results will be uploaded to QGIS. There are two ways:

  1. view result as a vector layer - This is streaming vector tiles directly from our server, which allows you to view results of the processings without downloading full results file, so it will be faster for big processings.

  2. save local gpkg file to view results - Saving local gpkg files on your disk for further loading as QGIS layers.


Vector tiles are an experimental feature for us, so choose the method that is convenient for you.


This tab contains also Output directory button.

Output directory - set up where the processing results will be loaded on your local disk If the save local gpkg file to view result option is selected.

4. Help

The tab contains all useful links to the plugin documentation.

How to run the processing

To start the processing you need to add the Polygon Area of Interest (AOI).

The plugin has several built-in options for creating AOI.

  1. Create new AOI from the map canvas extent using the “+” button;

  2. Upload the existing AOI using the “+” button;

  3. Draw AOI at the map;

  4. Use the extent of the uploaded image.

Besides, you can create a new vector layer or add existing AOI into QGIS project. If the vector layer consists of several polygons select one of them.

View of the aoi

Use of commercial satellite imagery providers

How to connect to Maxar SecureWatch


SecureWatch is a service that provides global access to high-resolution satellite images and imagery basemaps from the world leader in remote sensing, MAXAR, through the subscription model. The spatial resolution of images varies in the range from 30 cm to 1 m. All images are accompanied by metadata, including information about the acquisition date and time, cloud cover etc. In our application we implemented the special interface to connect to this service and use imagery via Mapflow’s processings pipelines.

  • Use of embedded Maxar SecureWatch for image processing by Mapflow

    In the Data source drop-down list, select the required Maxar product (SecureWatch, Vivid), switch to the Imagery search tab.

  • Maxar preview

    1. Select your AOI in the Area drop-down list and click on the Search imagery.

    2. Double click on the selected image in the search results (or click Preview button) to add it on the map.


In the free tariff plan the Max zoom is limited up to 12 and the processing cannot be started using SecureWatch. If you want to use this data provider - you have to switch to the Premium tariff plan or write to us to get a quote.

  • Using your SecureWatch account for image processing by the Mapflow

View of the providers tab

  1. Click + button and choose Maxar WMTS option in the dropdown list;

  2. Enter Login / Password from your Maxar SecureWatch account;

  3. Enter WMTS URL link for Maxar Secure Watch (SecureWatch - Login - Securewatch - Use with - Web Services - WMTS)

  4. Optional: specify the coordinate system (default epsg:3857);

  5. Optional: Check Save login and password


How to find Maxar WMTS URL:

  1. Go to SecureWatch and login.

  2. In the upper menu select Use With >> Web Services >> WMTS

  3. Copy the WMTS (or TMS) url.

Your user profile in SecureWatch

The Connect ID is different for each product you have in your SecureWatch subscription. Therefore, initially choose the one you want. To do this, open the User Profile menu and in the title bar select the required of the two suggested mosaics (Vivid and SecureWatch).

  1. Click Preview.

Now the Maxar layer is available for preview in your raster layers list and for the AI-mapping processing using Mapflow.

How to find and process the image by Feature ID using Maxar SecureWatch

You can use SW to discover available images for you area of interest.

  1. Go to the Providers tab.

  2. Select Maxar SecureWatch from the dropdown list.

  3. In the Maxar SecureWatch imagery Catalog select the vector layer containing the boundary of your area of interest.


To define the imagery search area you can create the new polygon (Layer -> Create layer -> …, select Polygon as a geometry type, add polygon using the tool Add polygon feature) or upload it from the file with coordinates. If there is more than one polygon in the file, select with the tool Select object(s) the polygon you need. For more information on creating and working with vector layers, see the QGIS User Guide. Alternatively, you can check the option “use canvas extent”.

Get specific image from SW
  1. Search imagery, to view meta-data of all available images intesecting your AOI. You can apply search filters and specify the period for which you would like to receive images. This will help in forming an imagery catalog with the necessary parameters.

  2. Select the prteferable image from the imagery catalog or use the WFS generated vector layer (Maxar SW metadata) to search through more attributes. If you want to process a specific image in advance, insert your image ID in the field on the top of the plugin, this will make it easier to find the image in the imagery catalog.


Imagery metadata is saved in the form of vector layer. You can interact with its Attribute Table by searching through all attributes.

  1. Click Preview to view the selected image in the form of new raster layer (or double-clicking on the row in the table).


“max zoom 12” checkbox is active to prevent the paid streaming on the side of Maxar SecureWatch.

How to use other imagery services

Go to the plugin, on the Providers tab click on the Add (1) and enter the relevant data in the opened window (2). Click the Preview (3) the image, - you must be at the correct zoom and coordinates to see the image.

To start processing using this data source, go to the Processing tab, fill in all fields of processing parameters, click Start processing.

Custom imagery source

Name of the field / button



Name of other imagery data provider


URL of the imagery data provider


Data source type. You can enter your custom imagery source URL in one of the following formats: XYZ, TMS, WMS, Quadkey. All formats represent the most widely used protocols to fetch georeferenced imagery via HTTP.


Check for more imagery sources connections in the UserGuide How To:

  1. How to connect to Openaerialmap

  2. How to connect to Nearmap

How to upload your image

You can upload your own GeoTIFF. All raster layers currently loaded in your QGIS (1) are visible in the drop-down list (2) and can be selected for upload.

Upload TIF, select from list


Please, follow the requirements specified on the page with Requirements for using the platform when uploading your own images for processing through the API of the Mapflow platform.

  • Check the data type

    The Data type must be Byte (8 bit). If the Data type is Int16, or Float32 etc, please follow the instruction Userguides - How To. Alternative option: use the preprocessing script

  • Check the image size

    Both sides image dimension must not exceed 30.000x30.000 pixels. If you have larger images you should either cut them in smaller chunks or switch to the Mapflow custom.

  • Check the number of channels

    Normally, the Mapflow processes 3-channel RGB rendered images. Mapflow platform can also process single-band (panchromatic) imagery, but the NN models are not tuned for such kind of data, so the quality of the result may be worse than expected.

  • Check the projection and georeference

    Make sure that your imagery is georeferenced in geographic or projected coordinate system.

  • Check the resolution

    The resolution restrictions vary for different models, see Model requirements

You can send a request for data preprocessing to

Work with results

View the results

The processing results that are 100% complete can be downloaded as a vector file to your local directory or streaming as a vector tiles and automatically added as layer to QGIS workspace.

Double click on the processing name in the 1. Processing Table or select it and push the button “View results”. The layer will appear in the Layers panel (QGIS –> View –> Panels –> Layers) in the folder “Mapflow”. You can work with it further as with the usual vector layer in QGIS.


If the default AI model is used, the plugin automatically assigns predefined styles to the vector layer. For all custom models / pipelines the single default style is assigned. You can always change it.

Save results

The processing results, which are 100% complete, can be downloaded in GeoJSON format, to do this, click on the Save results button, select output directory in the window that appears and name the file to be saved.

Delete the processing

To delete the processing - select it in the list, click the button “Delete” and confirm.


The processing cannot be restored by user. Before the permanent deletion the data backup is temporarily stored on the Mapflow server in case of emergency. So if you deleted your results by mistake and want us to restore the processing – send your request to the support without delay.

Review the results*


❗️ This option is available for the limited number of Mapflow customers who have signed up for the enterprise support

If activated, every completed processing comes with the status “Review required”. The user can either accept the result or request the review, so the support can reprocess it and get better results, until it meets the requirements. To request the Review of the results:

  1. Select the processing with the Status “Review required” and click the “Review” button

  2. Provide comments in the Review dialogue:

  • Add your comment on why and what you want us to make a review

  • Optionally Add the polygon area, highlighting the objects that are not correctly processed, weren’t identified correctly, etc – it will help us to pay attention to the specific issues

  • The processing Status will change to “In review”

Upload TIF, select from list

Select AOI and request a Review

  1. As soon as Review is done on our side the Status will change back to “Review required”. Accept the results or return to the #1

Upload TIF, select from list

Accept the results when Review is done


If you are behind a firewall, go to QGIS -> Preferences -> Network and will please adjust the proxy settings for plugin connection.

Proxy settings
